High-Performance KVM-over-IP Extender & Matrix Solution
Experience seamless, real-time remote access with the P2PKVM Series, a high-performance KVM-over-IP extender and matrix solution. Designed for mission-critical environments, it delivers ultra-low latency, high-resolution video, and secure connectivity
over IP networks, ensuring efficient system control and flexibility.
Experience seamless, real-time remote access with the P2PKVM Series, a high-performance KVM-over-IP extender and matrix solution. Designed for mission-critical environments, it delivers ultra-low latency, high-resolution video, and secure connectivity
over IP networks, ensuring efficient system control and flexibility.
Supporting resolutions up to 3840×2160 at 30Hz, the P2PKVM series is compatible with DVI-D, HDMI, and DisplayPort in both single and dual-head configurations. It also offers full USB KVM emulation and transparent USB 2.0 support with audio, providing
fast, responsive control over gigabit networks via copper or fiber connections.
The P2PKVM Series Manager, powered by Savigate, offers IT administrators a centralized platform to efficiently manage KVM-over-IP extenders. Designed for ease of use, security, and scalability, it simplifies administration through a web-based GUI that
provides full control and real-time visibility over connected KVM devices.
The P2PKVM series offers an entry-level manager solution with hotkey
switching and an intuitive OSD. Perfect for IT support and training
environments, this solution allows users to view or control any
server on the network easily.
The P2P-KVM series delivers a unified platform that adapts to any environment. With three selectable operating modes and the optional
P2P-Trio direct-connect receiver, the system scales seamlessly from simple point-to-point links to full enterprise management
Simple, zero-configuration point-to-point extension.
Connect one transmitter to one receiver for instant KVM-over-IP
extension with ultra-low latency. Ideal for basic workstation setups,
training stations, and local operator consoles.

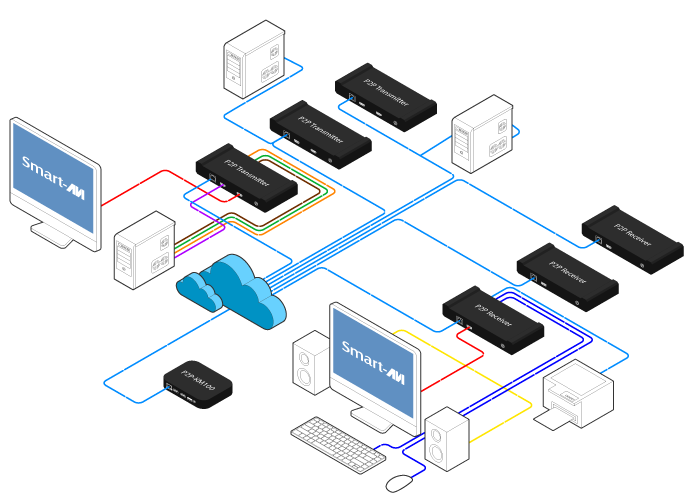

OSD-based multi-user KVM switching over a network.
Any transmitter can be routed to any receiver, allowing users to switch
between multiple systems through an intuitive on-screen display.
Perfect for control rooms, NOCs, and collaborative IT environments.
Centralized management, permissions, and advanced routing.
When paired with the SaviGate controller, administrators gain full
visibility and control of all endpoints — including user access rights,
real-time previews, switching, and system-wide configuration from a
single web dashboard.

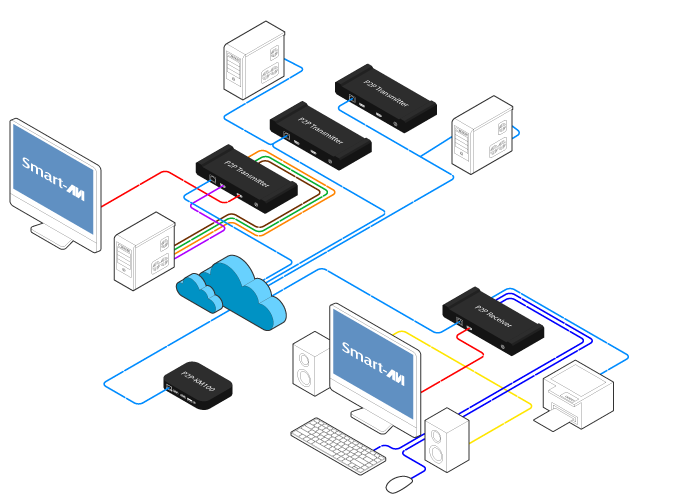

Three-port direct-connect switching — no network switch required.
The P2P-Trio receiver includes up to three RJ45 inputs, allowing direct
connection to three transmitters for fast local switching using hotkeys
or OSD. Perfect for secure stations or small environments that need
multi-system access without adding a network switch.
Server Farms
Air Traffic Control
Enterprise IT
Government & Military
Control Rooms
Broadcast & Production
Our P2P series offers a comprehensive range of solutions for DVI, HDMI, and DisplayPort video formats, supporting both single-head and dual-head configurations. Available in Cat5 and fiber optic options, these systems provide flexible and high-performance KVM switching and extension tailored for a wide variety of applications.
P/N | Description | Single-Head | Dual-Head | 3-Port KVM | Fiber | Copper |
|---|---|---|---|---|---|---|
DVI | ||||||
| P2P-KVT300 | Point to Point | Single-Head | DVI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 |  | | | ||
| P2P-KVR300 | Point to Point | Single-Head | DVI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KVT302 | Point to Point | Dual-Head | DVI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KVR302 | Point to Point | Dual-Head | DVI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KVR130 | 3-Port | Single-Head | DVI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
HDMI | ||||||

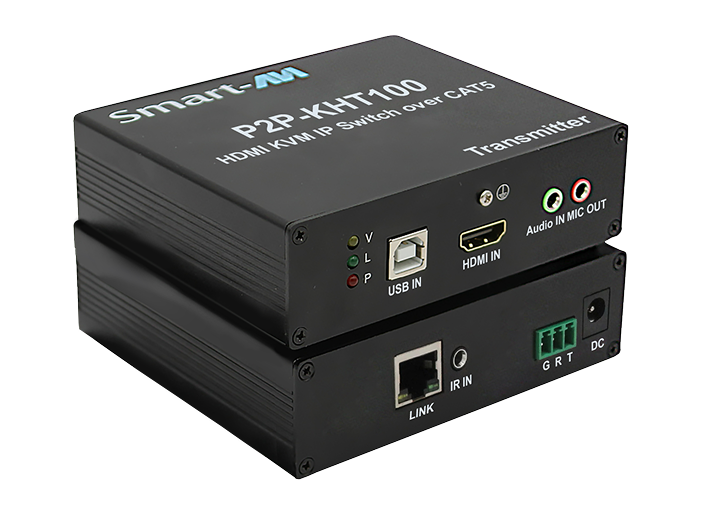

| P2P-KHT100 | Point to Point | Single-Head | HDMI CAT5 | Transmitter USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KHR100 | Point to Point | Single-Head | HDMI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KHT300 | Point to Point | Single-Head | HDMI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KHR300 | Point to Point | Single-Head | HDMI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KHT302 | Point to Point | Dual-Head | HDMI CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KHR302 | Point to Point | Dual-Head | HDMI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KHR130 | 3-Port | Single-Head | HDMI CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KHT310 | Point to Point | Single-Head | HDMI CAT5 | Fiber Transmitter USB 2.0 – Audio – RS-232 local loop | | | | ||
| P2P-KHR310 | Point to Point | Single-Head | HDMI CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
DP | ||||||

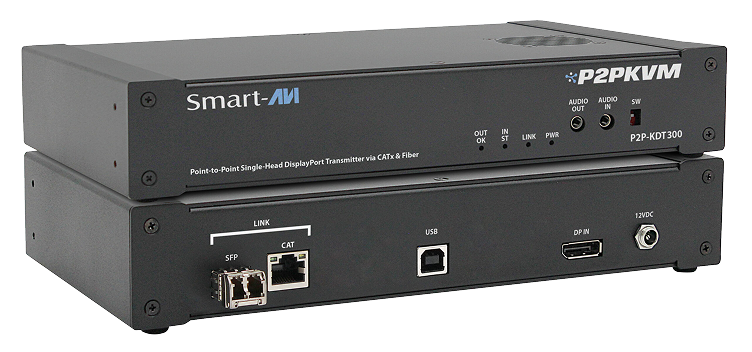

| P2P-KDT300 | Point to Point | Single-Head | DisplayPort CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KDR300 | Point to Point | Single-Head | DisplayPort CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
| P2P-KDT302 | Point to Point | Dual-Head | DisplayPort CAT5 | Fiber Transmitter USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KDR302 | Point to Point | Dual-Head | DisplayPort CAT5 | Fiber Receiver USB 2.0 – Audio – Optional RS-232 | | | |||
| P2P-KDR130 | 3-Port | Single-Head | DisplayPort CAT5 | Receiver USB 2.0 – Audio – Optional RS-232 | | | | ||
Gateway Manager | ||||||

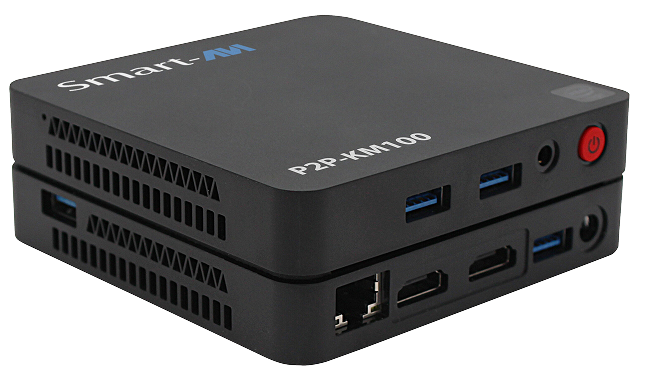

| P2P-KM100 | SaviGate P2PManager Controller – Complete & Secure Control for P2P Series KVM-over-IP | |||||
